Surface Finishing
Professional stainless steel surface finishing for durability, hygiene, and performance.
Fortis Industrial Solutions provides industrial-grade surface finishing services for stainless steel equipment used in food, dairy, pharmaceutical, chemical, and industrial applications. Our finishing processes enhance corrosion resistance, improve cleanability, and extend equipment life while maintaining compliance with applicable ASTM hygiene and surface standards.
Visual Appeal
Clean, professional finish that reflects quality craftsmanship on process equipment.
Functional Performance
Reduces friction and wear while helping components run more efficiently over time.
Hygienic by Design
Smoother surfaces improve cleanability and reduce contamination traps.
We tailor finish selection to your cleaning requirements, service conditions, and visual expectations.
Why Surface Finishing Matters
- Improves corrosion resistance and surface durability
- Enhances hygiene by reducing surface contamination traps
- Reduces wear, friction, and long-term maintenance costs
- Delivers uniform, professional appearance for process equipment
- Supports sanitary and cleanroom operating environments
For sanitary systems, a controlled finish helps reduce residue buildup and improves washdown / CIP effectiveness.
Surface Finishing Methods
We select the finishing method based on equipment geometry, access, hygienic requirements, and the target surface condition.
Mechanical Finishing
- Grinding, brushing, and controlled abrasion
- Uniform texture for industrial and sanitary applications
- Ideal for tanks, piping, and fabricated equipment
Bead / Glass Bead Blasting
- Matte, non-reflective, uniform surface
- Improves cleanability without aggressive material removal
- Suitable for hygienic and industrial environments
Surface Conditioning
- Weld blend-out and heat-affected zone conditioning
- Smoothing after fabrication or repair
- Preparation for passivation or polishing (if required)
Performance & Hygiene Benefits
- Reduced surface roughness improves washdown and CIP effectiveness
- Limits dirt, grease, and microbial adhesion
- Enhances resistance in food, chemical, and wash-intensive environments
- Consistent finish quality across large equipment assemblies

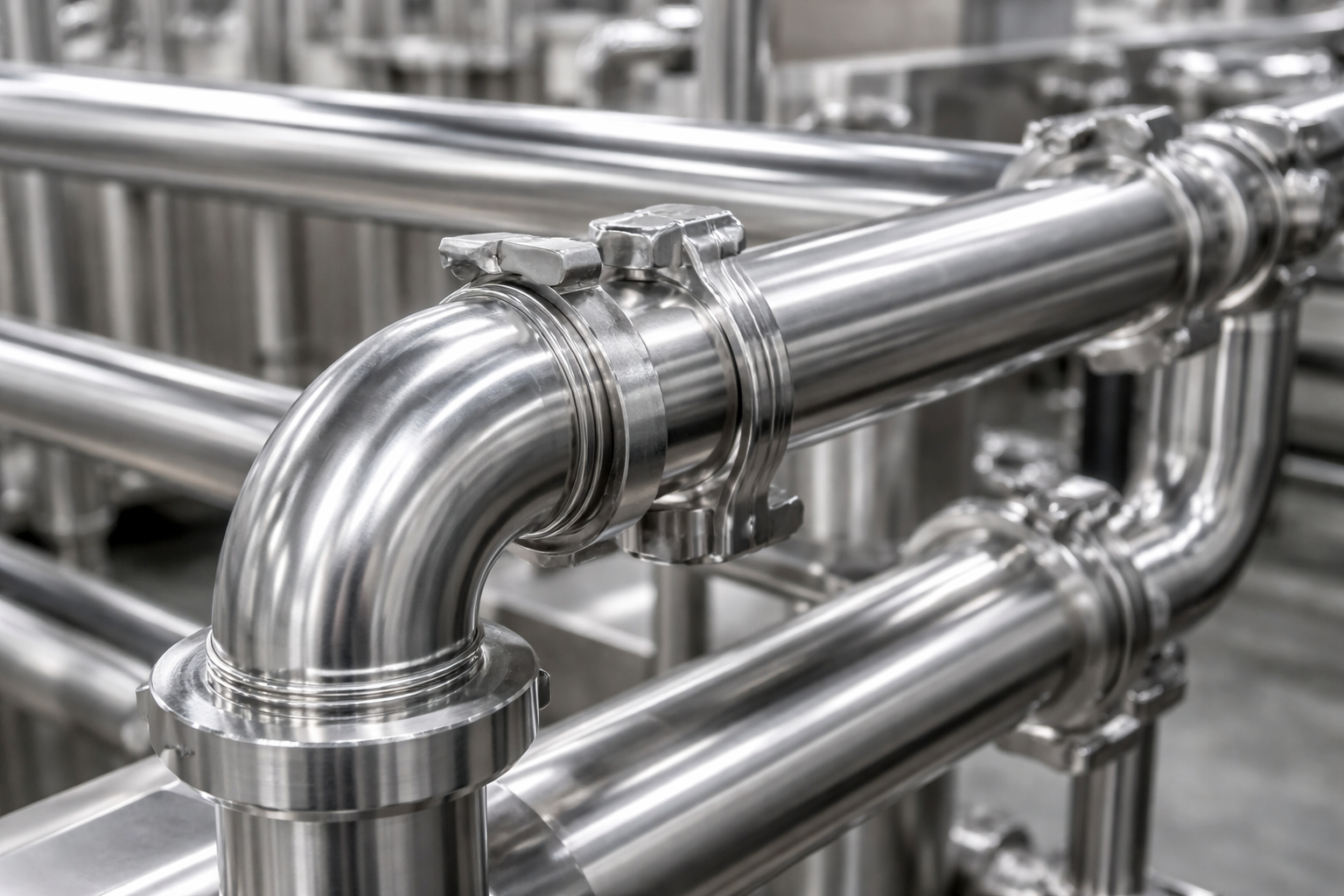

Applicable Equipment
If you have a target finish spec or hygienic requirement, include it with your quote request.
Types of Surface Finishing We Achieve
Surface roughness is measured in Ra (Roughness Average). Selection depends on cleanability, service conditions, and aesthetic requirements.
Brushed Finish (Ra: 0.2 – 0.5 µm)
Uniform directional grain with a clean, satin appearance.
- Typical: Food/pharma equipment, tanks, piping, washdown surfaces
- Benefits: Professional look, balanced durability and cleanability
Polished Finish (Ra: 0.05 – 0.2 µm)
Reflective finish produced through polishing or buffing with fine abrasives.
- Typical: Sanitary components, premium equipment, decorative stainless
- Benefits: Improved corrosion resistance, easier cleaning, refined appearance

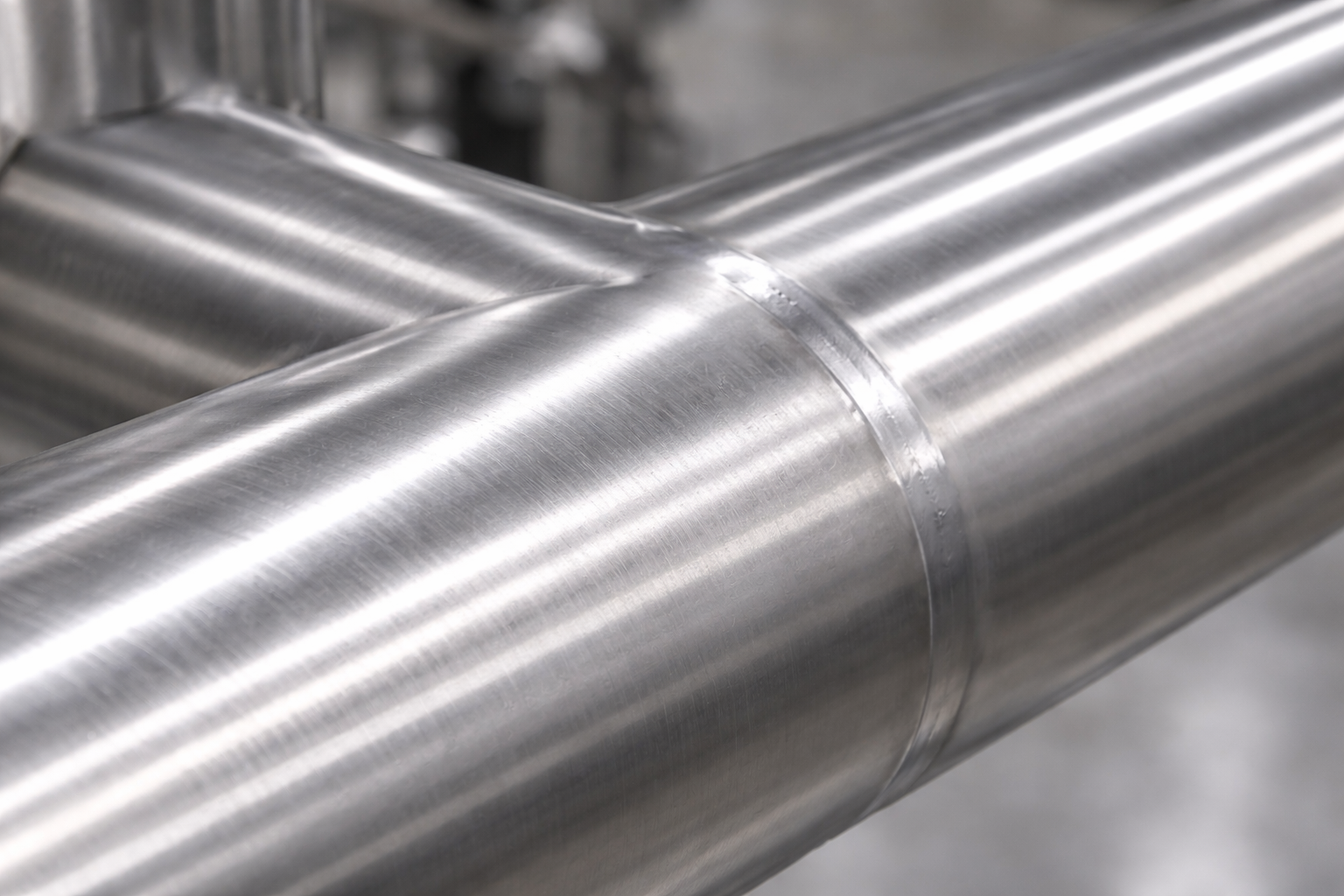

Mirror Finish (Ra: 0.02 – 0.05 µm)
Ultra-smooth, highly reflective finish achieved through multi-stage polishing.
- Typical: High-visibility sanitary equipment, specialty components
- Benefits: Exceptional cleanability, premium aesthetic, strong corrosion performance
Matte / Bead-Blasted Finish (Ra: 1.0 – 2.0 µm)
Non-reflective finish created through abrasive or bead-blasting techniques.
- Typical: Industrial tanks, machinery components, low-glare environments
- Benefits: Durable, low maintenance, uniform industrial look
Not sure which finish you need? Send photos and service details — we’ll recommend an appropriate finish level.
Surface Finish Comparison
Typical finish ranges and equivalents (values vary by process, geometry, and application).
| Industry Finish | Grit Range | RA Finish | ISO Finish | ASME-BPE Equivalent |
|---|---|---|---|---|
| #3 | 40–60 Grit | 100–60 µin | N9 | — |
| #4 Commercial | 80–120 Grit | 60–32 µin | N8–N7 | SF1–SF6 (OD) |
| #4 True | 180 Grit | ≤ 30 µin | N6 | SF3 (ID) |
| #4 Sanitary | 220–240 Grit | 25–15 µin | N6 | SF1–SF2 (ID) |
| #6 | 240–320 Grit | 15–12 µin | N5 | — |
| #7 | 400 Grit → Buff | 8–4 µin | N5 | — |
| #8 Mirror | 600 Grit → Buff | < 2 µin | N4 | — |
| #8 Super Mirror | 600 Grit → Non-Directional Buff | < 2 µin | N3 | — |
